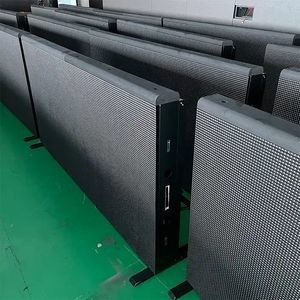

Name: Outdoor P10 Anti -Collision Stadium LED Screeniron Cabinet
Brand: Guangzhou Junchen Display Technology Co., Ltd.
Availability: InStock

Home Products Football Field Series LED Screen

Outdoor P10 Anti -Collision Stadium LED Screeniron Cabinet

Product Details:

Contact Now

Detailed Product Description

Model NO.:	P10	Pixel Pitch:	10mm
Pixel Configuration:	1R,1G,1B	Pixel Density:	10000 Dots/Sqm
Scanning Mode:	1/2 Scan	System Operating Platform:	Colorlight, Nova
Display Type:	LED Video Display	Application:	Stage Performance, Advertising, Shopping Guide, Stadium
IP Rating:	IP65	Certification:	CE, RoHS, CCC, ETL
Function:	Sdk	LED Chip:	Nationstar/Kinglight
Cabinet Material:	Die-Casting Aluminum Cabinet/Iron	Body Size:	960mm*960mm
Transport Package:	Wooden Case/Flight Case/Carton Box Or As Required	Specification:	960x960x85mm
Origin:	China	HS Code:	8531200000
Production Capacity:	100000pieces/Year

Outdoor P10 Anti -Collision Stadium LED ScreenIron Cabinet

tems	P5	P6.67	P8	P10
Pixel	1G1R1B	1R1G1B	1R1G1B	1R1G1B
Configuration	SMD2727	SMD2727	SMD3535	SMD3535
Pixel Pitch	5mm	6.67mm	8mm	10mm
Pixel Density(m2)	40000dots/m2	20736 dots/m2	15625 dots/m2	10000 dots/m2
Module Size(mm)	320x160mm	320x160	320x160	320X160
Pixels/Module	64x32	32X32	40X20	32X16
Cabinet Size(mm)	960x960	960X960	1024X1024	960X960
Pixels/Cabinet	192x192	144X144	128X128	96X96
Cabinet Weight	36kg/m2
Brightness(nits)	6000	6000	6000	6000
Viewing Distance	>5m	>7m	>8m	>10m
Max Power	1200w/m2	1200w/m2	1200w/m2	1200/m2
Average Power	350w/m2	350w/m2	350w/m2	350w/m2
Driver Mode	1/5scan	1/6 scan	1/5 scan	1/2 scan
Viewing Angle	H: 140°; V: 140°		H:120°;V120°
Cabinet Material	Diecasting Aluminum
Refresh Rate	2880-3840Hz
LED Life	100, 000 hours
Supply Voltage	AC100-240V(50--633Hz)
Operating Temperature	-40ºC ~ +65ºC
Operating Humidity	10% - 90%
Gray Scale	16bit
IP Rating	IP65
Color Temperature	6500-9500k
Working Humidity	10%-90%RH

LED recommends that our customers purchase enough LED display modules for spare replacement.
If the LED display modules come from different purchases, the LED display modules may come from different batches, which will cause color difference.

Guangzhou Junchen group purchase Co.,Ltd. is a new high-tech enterprise who specialized in LED display ,R&D, manufacturer ,sales and service. Built in 2007 with registered capital over 20 million RMB ,located in Guangzhou & Shenzhen.

Positioning at middle-and-high-end market , our main products include: LED rental display series , indoor and outdoor LED advertising display series, indoor LED small pixel series, stadium series, LEDtraffic display , LEDball display , LEDspecial-shaped display series , etc.

With over 15 years development , Junchen group now has become a well-known LED display solution provider whose products are applied extensively in advertising media, meeting hall , performance stage , stadium, as well as other relevant fields.

As a leading LED display solution provider and manufacturer in China , persevering in its company core strategy , Junchen group has always been sticking to its quality policy , enterprising while improving to outdo costumers' expectation. With excellence technological level, top quality manage system, first-class modernization full automatic production equipment , Lourionsled not only offers costumers numerous aesthetic, stable, safe solutions but also wins a good reputation and reliability throughout the world.

We now established independent quality management system,got ISO9001 Quality Management System certification and also ISO14001 Environmental Management System certification . Our products pass national coerciveness products certification like CCC, CE, ROHS, FCC. etc. We also own multiple national patent and certificates of honor at the same time.

Superior quality insurance and impeccable service concept gained large of customers ' prasies from domestic and overseas. With it , Lourionsled products are sold to over 160 countries and areas like US , Japan , Russia , Sweden , Turkey ,Poland , France , Israel , Brazil , Spain, etc. Outdoor P10 Anti -Collision Stadium LED Screeniron Cabinet 0

Features: (Most use in Stadium)

♦ Protection pad and soft module mask;

♦ Flexible support structure for adjustable leaning degrees;

♦ Cabinet material diecasting magnesium, flat and accurate installation;

♦ Lighter&Thinner;

♦ Smart lock system, easy installation;

♦ Strong stability and liability;

Outdoor P10 Anti -Collision Stadium LED Screeniron Cabinet 6

Outdoor P10 Anti -Collision Stadium LED Screeniron Cabinet 8

Pre-sales support:

1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our LED products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
